Understanding the Importance of the Capillary Tube in Igu Chambers

The Role of a Capillary Tube in Igu Chambers

Effective design and functionality are crucial in any specialized equipment, including igu chambers. One of the pivotal components in these units is the capillary tube, which is specifically engineered to regulate atmospheric pressure within the chamber. This tube plays a vital role in allowing air to enter and escape the system, thereby preventing damage caused by pressure variations.

Why a Gooseneck Design is Essential

The design of the capillary tube is fundamental to its operation. To ensure that the tube allows only the necessary amount of air in and out, maintaining a 'gooseneck' configuration is essential. This unique shape prevents continuous communication between the interior of the igu chamber and the external atmosphere, which could lead to pressure imbalances.

When designing the capillary tube, it is important to adequately position it within the unit. Typically, the tube should be installed on one of the sides, avoiding locations such as the top or bottom spacer. This strategic placement helps to maintain the structural integrity and functionality of the igu chamber, especially during transport.

Transporting Igu Chambers: Special Considerations

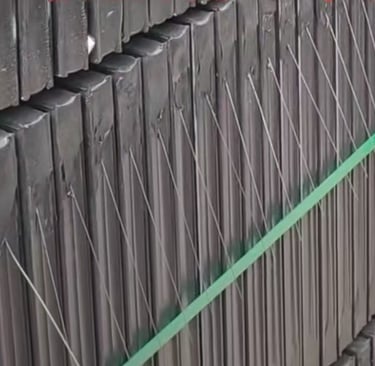

Understanding transportation logistics is essential for ensuring the optimal performance of igu chambers. Most units are transported on their sides to fit into shipping containers, which calls for specific precautions regarding the capillary tube. It is crucial to preserve the gooseneck design with a 50 mm difference to prevent any operational issues.

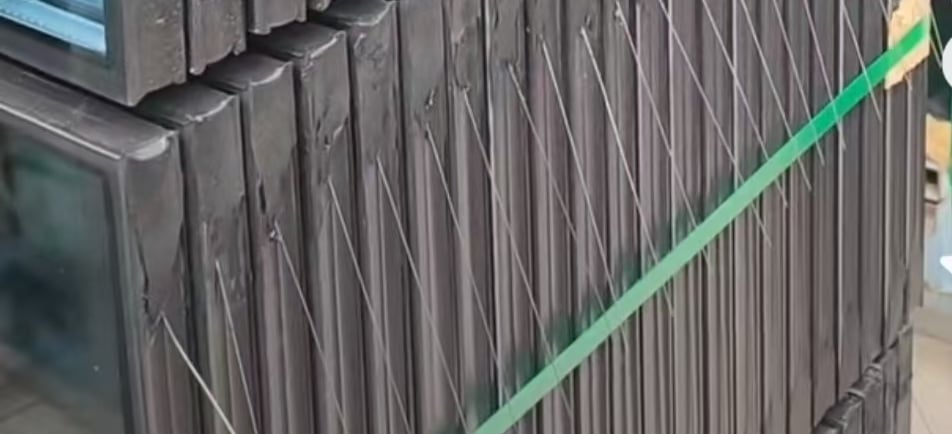

To secure this configuration during transport, it is recommended to tape the tip of the capillary tube to the front of the glass in a downward angle. This simple yet effective measure ensures that the tube maintains its desired shape and performance while preventing potential damage during movement.

By adhering to these guidelines, users can effectively manage the functionality of the igu chamber, ensuring that the capillary tube performs as intended. Proper attention to the design and placement of the capillary tube not only optimizes air flow but also enhances the overall reliability of these specialized units.
